Market Price: US $ 170 /PC
• Wide temperature range of 90–550°C, with 150W rated power / 200W peak output, efficiently handling large solder joints.

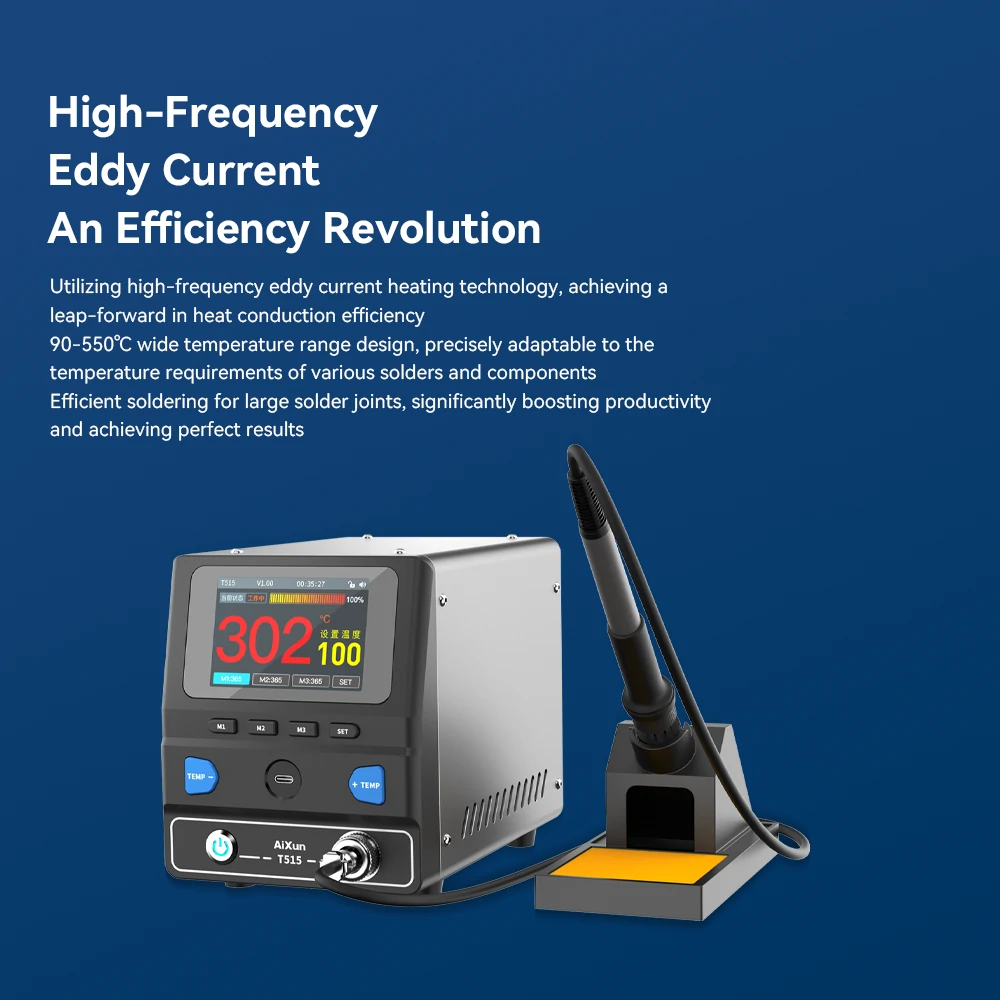

• High-frequency eddy current heating technology enables instant solder melting and ultra-fast temperature recovery with no waiting

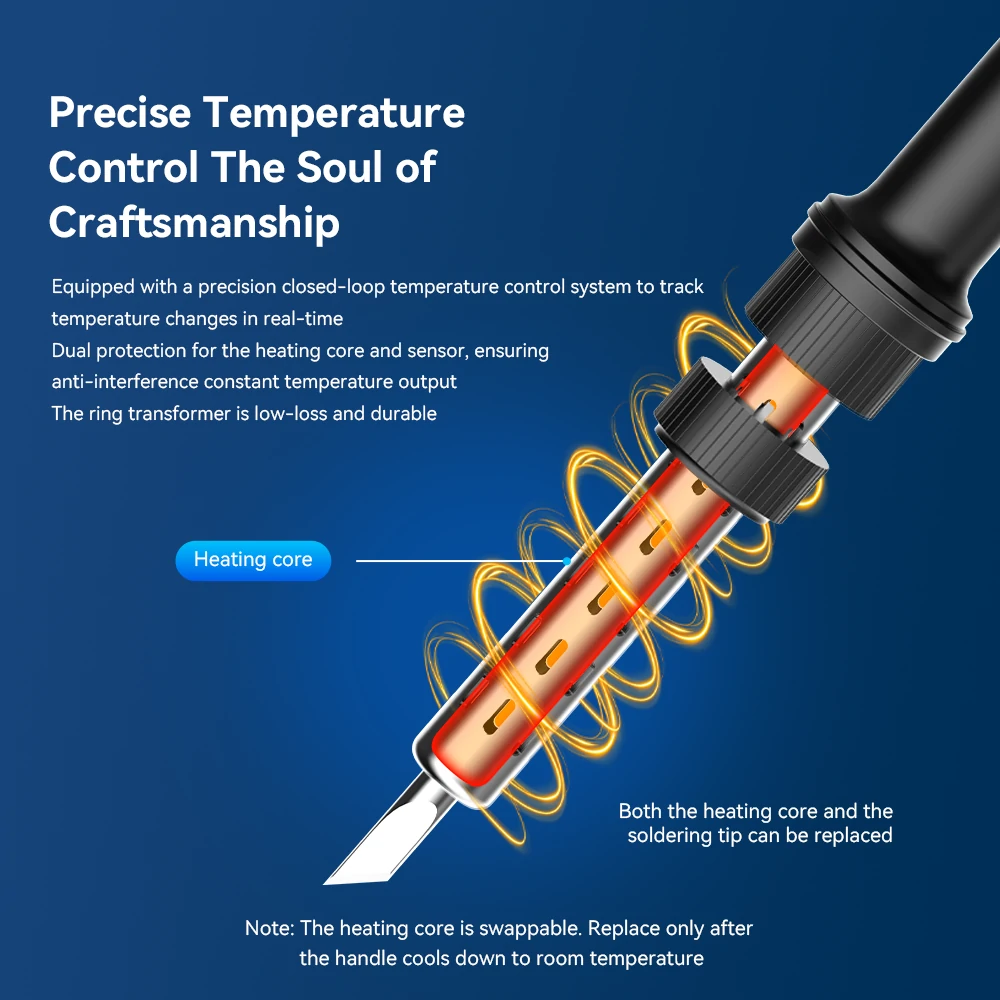

• Precision closed-loop temperature control system provides real-time temperature tracking for consistently stable solder joints
• Low-loss ring transformer power supply with dynamic temperature compensation ensures long-term accurate output.
• 3.5-inch IPS HD color display supports digital and curve dual-interface visualization for intuitive temperature management.
• Dual protection from heating core and sensor delivers interference-resistant, constant-temperature output for enhanced safety and reliability.
• Supports multi-language selection and temperature unit switching, with adjustable backlight and sound for smarter interaction.

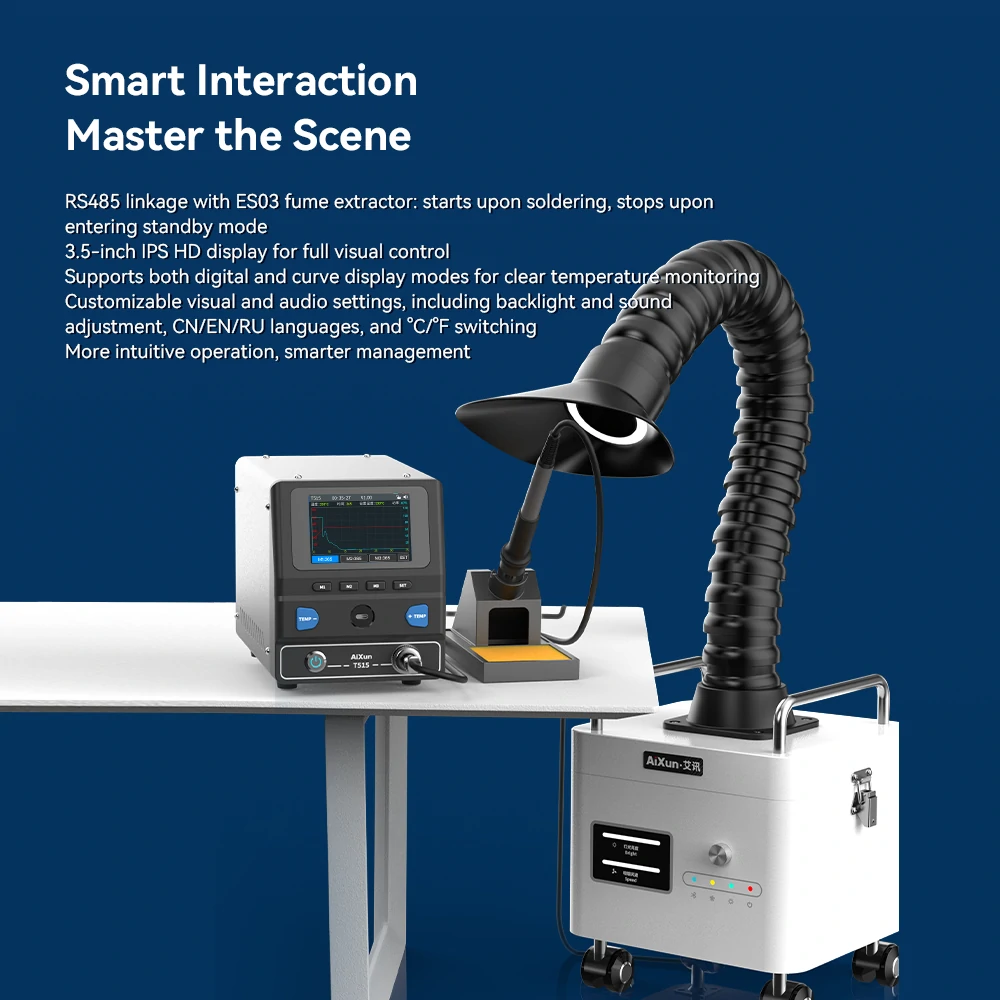

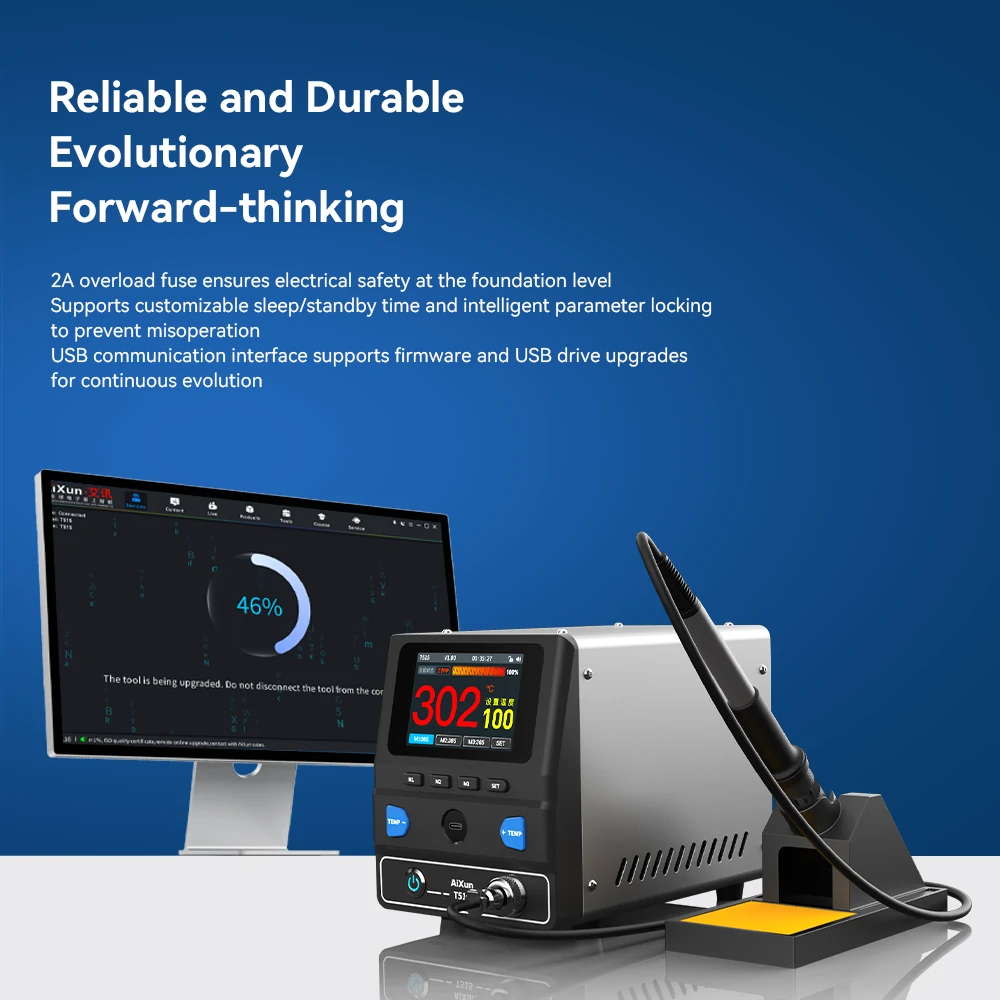

• RS485 + USB communication interfaces support firmware upgrades and host PC connectivity, with password lock protection for continuous evolution beyond today.
Specifications:
|
Product name |
T515 High-Frequency Soldering Station |
|
Model |
T515 |
|
Brand |
AiXun |
|
Rated power |
150W |
|
Peak power |
200W |
|
Input voltage |
230V AC±10% |
|
Temperature stability |
±2°℃ |
|
Tip-to-Ground resistance |
2Ω |
|
Tip-to-Ground potential |
2mV |
|
Input fuse |
2A |
|
Compatible handle |
205H |
|
Soldering tip |
500-3C/500-SK |
|
Communication |
USB+RS485 |
|
Display type |
3.5-inch IPS HD screen (Res: 480×320) |
|
Standby mode |
Delayed standby |
|
Net weight |
3.5kg |
|
Gross weight |
4.6kg |
Features:

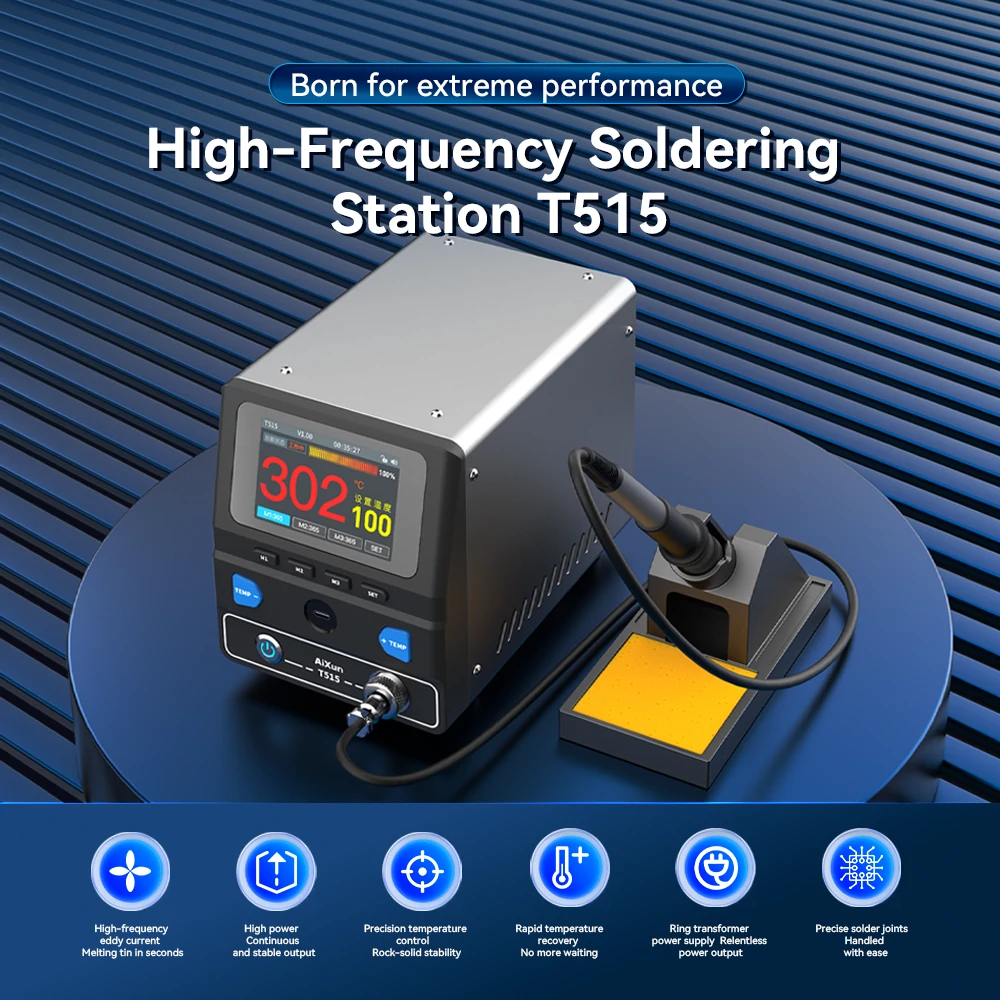

The AiXun T515 high-frequency soldering station, powered by high-frequency eddy current heating technology, redefines the speed and precision of professional soldering. Its high-frequency energy is instantly focused, significantly improving thermal efficiency, achieving rapid solder melting and quick temperature recovery, maintaining stable output even under high-intensity operation. A wide temperature range of 90–550℃ covers various solder requirements, with a robust 150W rated power and 200W peak power delivery, providing ample power for soldering large joints and high thermal conductivity materials.
The T515 features a precise closed-loop temperature control system and dynamic temperature difference compensation algorithm, combined with a low-loss ring transformer power supply architecture, achieving long-term stable and interference-resistant constant temperature output. A 3.5-inch IPS high-definition color screen supports both digital and curve display interfaces, providing real-time visibility of temperature changes. Multi-language and temperature scale switching, parameter locking, and USB firmware upgrade functions ensure continuous evolution in terms of safety and intelligence. Whether for precision electronics repair, laboratory research and development, or industrial automation production line applications, the T515 sets a performance benchmark in the professional soldering field with its high-frequency efficiency and precise control.

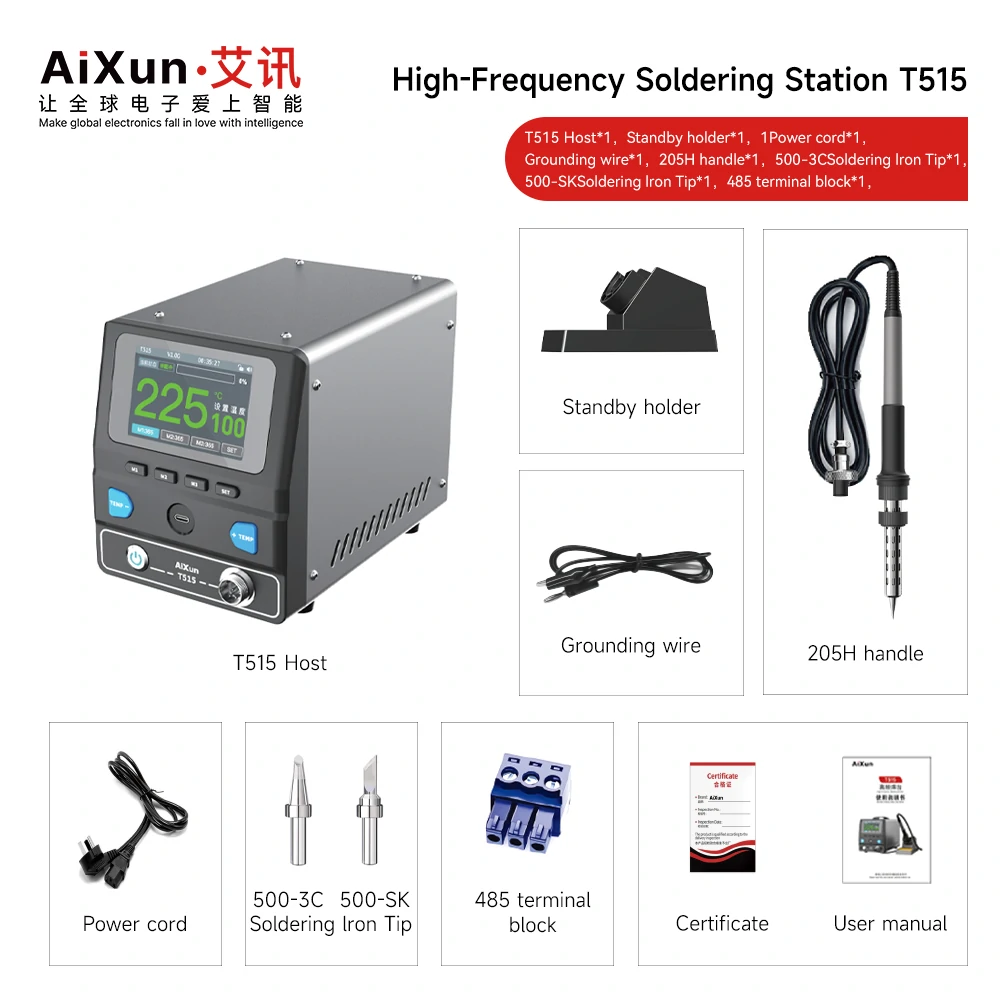

List of Packing:
T515 host x 1
Standby holder x 1
Grounding wire x 1
205H handle x 1
500-3C soldering tip x 1
500-SK soldering tip x 1
485 terminal block x 1
Certificate x 1
User manual card x 1
Power cord x 1
