Market Price: US $ 2750 /PC

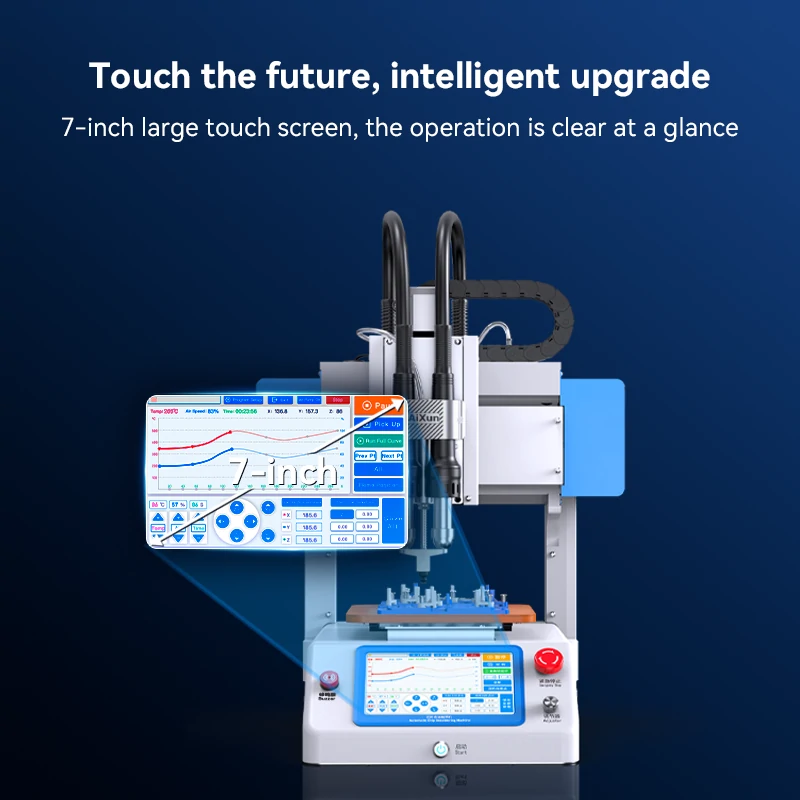

• 7-inch large touch screen, the operation is clear at a glance
• Motherboard layering and dismantling, with zero damage to the chips, and stable solder joints without falling off

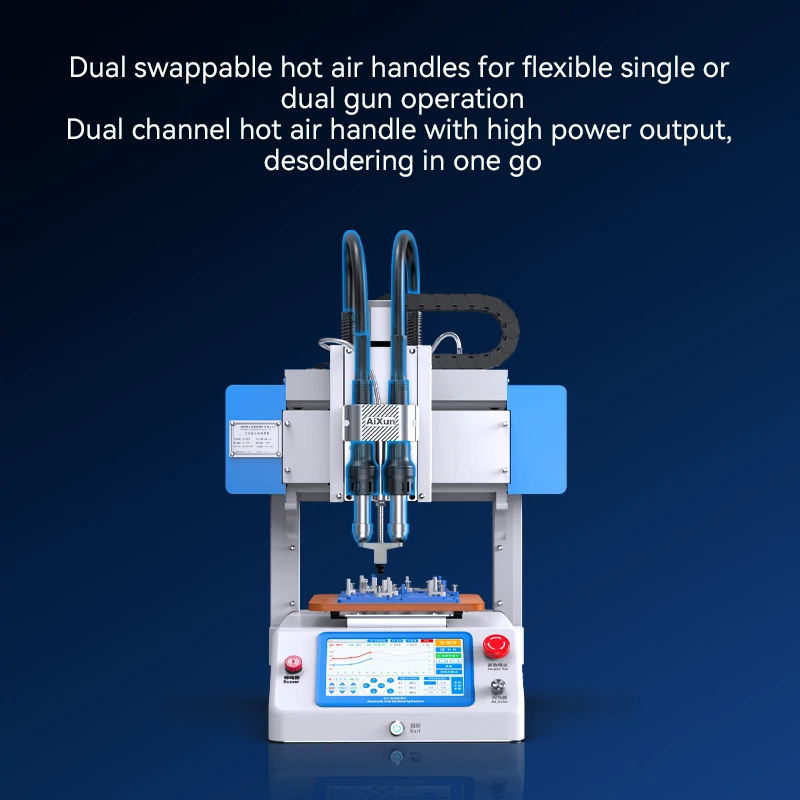

• Swappable dual-channel hot air station, switch between single/dual working modes flexibly, dual-channel hot air handle with high power output, desoldering in one go
• Support user-customized desoldering programs and self-made desoldering curves

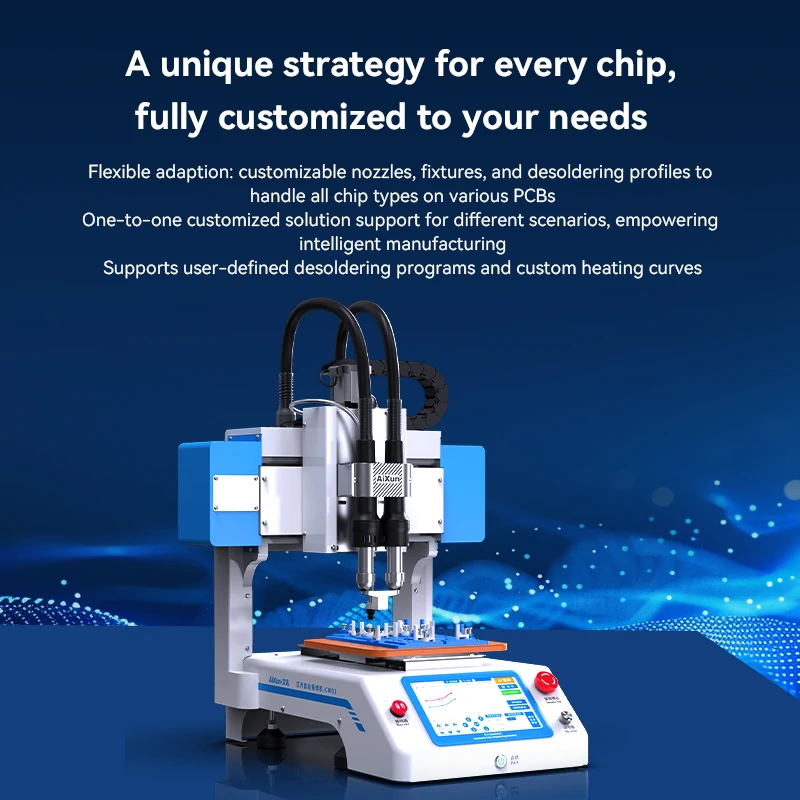

• Flexible adaption: customizable nozzles, fixtures, and desoldering profiles to handle all chip types on various PCBs
• One-to-one customized solution support for different scenarios, empowering intelligent manufacturing

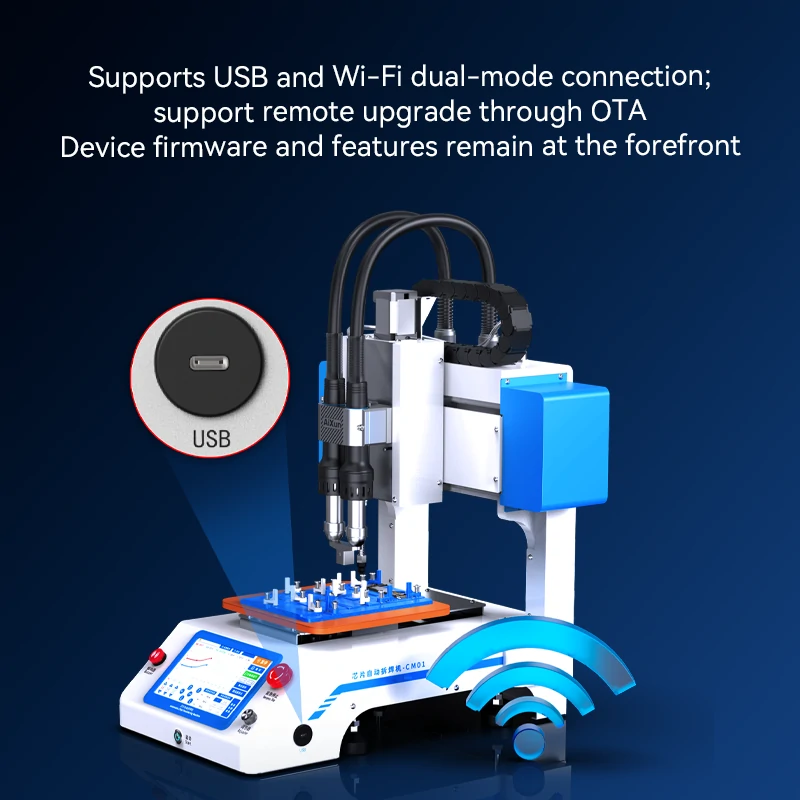

• Supports USB and Wi-Fi dual-mode connection; support remote upgrade through OTA
Specifications:
|
Product name |
Automatic Chip Desoldering Machine CM01 |
|
Model |
CM01 |
|
Brand |
AiXun |
|
Operating system |
Self-develop operating system |
|
Working voltage |
220V |
|
Rated power |
1400W |
|
Total weight |
28kg |
|
Hot air handle |
Two swappable hot air handles are included as standard |
|
Hot air handle power |
1400W*2 |
|

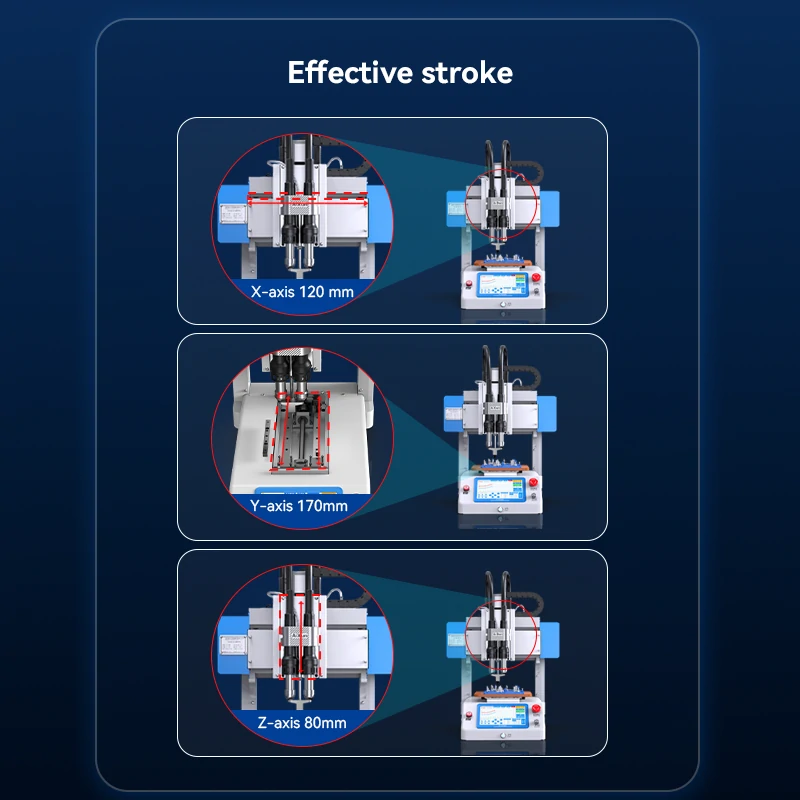

Effective stroke |
X-axis 120 mm / Y-axis 170 mm / Z-axis 80 mm |
|
Package dimensions |
650mm*550mm*740mm |
|
Micro vacuum pump |
Suction negative pressure 60-70kpa |
Features:

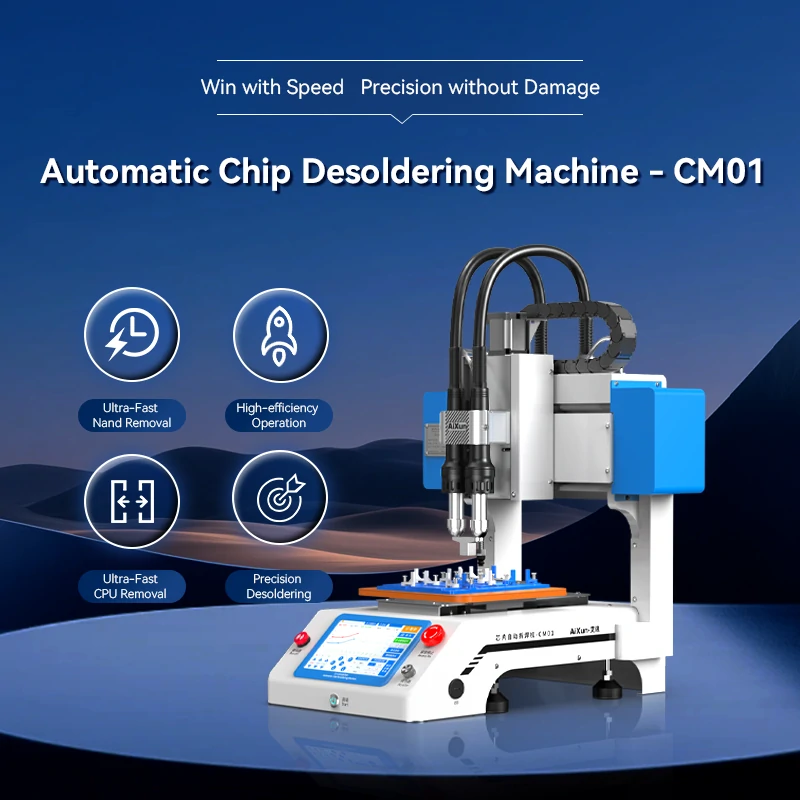

AiXun's CM01 automatic chip desoldering machine is designed for intelligent manufacturing and high-precision chip rework. Equipped with a self-developed industrial operating system, its 7-inch touchscreen provides an intuitive and user-friendly operating experience. Based on corresponding hot air desoldering curves, the machine achieves zero-damage chip removal and secure solder joint maintenance, significantly improving the yield rate of repair and production. It comes standard with two swappable high-power hot air guns, allowing flexible switching between single/dual stations. Simultaneous output from both guns completes the desoldering process in one go, significantly improving efficiency and stability. Precision X/Y/Z axis travel ensures accurate displacement, while a micro vacuum pump provides stable negative pressure, ensuring reliable chip pickup and placement.
The CM01 supports user-defined desoldering programs and curves, allowing for precise settings based on PCB structure, chip size, and process requirements. It supports customized nozzles and fixtures, achieving highly flexible process matching capabilities. It also supports USB/WiFi dual-mode connectivity and OTA remote upgrades for continuous system performance optimization. AiXun can provide one-to-one desoldering and soldering solutions for different application scenarios, helping enterprises improve their intelligent manufacturing capabilities and build efficient, controllable, and digital chip repair and desoldering processes.

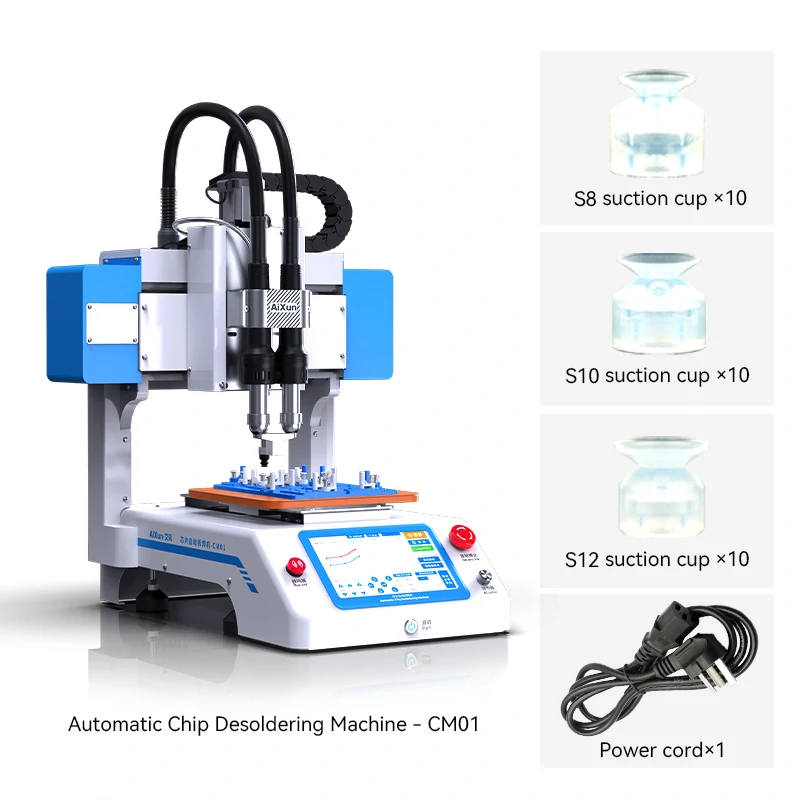

List of Packing:
Automatic Chip Desoldering Machine x 1
S8 suction cup x 10
S10 suction cup x 10
S12 suction cup x 10
Power cord x 1
